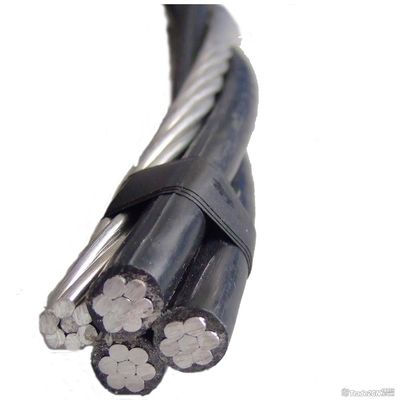

Aluminum ABC Cable XLPE PVC Insulated 4*16mm2 ABC Cable

Aluminum ABC Cable XLPE PVC Insulated 4*16mm2 ABC Cable

  • Aluminum ABC Cable XLPE PVC Insulated 4*16mm2 ABC Cable
  • Aluminum ABC Cable XLPE PVC Insulated 4*16mm2 ABC Cable
  • Aluminum ABC Cable XLPE PVC Insulated 4*16mm2 ABC Cable
  • Aluminum ABC Cable XLPE PVC Insulated 4*16mm2 ABC Cable
  • Aluminum ABC Cable XLPE PVC Insulated 4*16mm2 ABC Cable
Aluminum ABC Cable XLPE PVC Insulated 4*16mm2 ABC Cable
제품 상세 정보:
원래 장소: 허난
브랜드 이름: Sanwu
인증: ISO CCC
모델 번호: 알파벳
결제 및 배송 조건:
최소 주문 수량: 1000M
가격: Negotiable
포장 세부 사항: 표준 수출 나무 드럼 또는 릴
배달 시간: 1-15일
지불 조건: L/C, D/A, D/P, T/T, 웨스턴 유니온, MoneyGram
공급 능력: 하루 200톤
접촉
상세 제품 설명
원본의 장소: 중국 허난성 지휘자: 1350 알루미늄
절연: XLPE / PVC 유형: 낮은 전압
포장: 처리된 나무 드럼 애플리케이션: 배전

Triplex 1/0 Aluminum Conductor 600V Low Voltage Power Cable



1. Application

Aerial Bunched Cable ABC cable primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

2. Specification of Triplex Low Voltage Power Cable

Cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire



3. Conductor:

Phase Conductor Bare Neutral Messenger
AAC AAC
ACSR
Alloy



4. Service Drop Cable Meets or Exceeds the Following Specifications:

1). Aluminum Wire,1350-H19 for Electrical Purposes;

2). Aluminum Conductors,Concentric-Lay-Stranded;

3). Aluminum Conductor,Concentric-Lay-Stranded,Coated Steel Reinforced(ACSR);

4). Concentric-Lay-Stranded 6201-T81 Conductors;

5). Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474;



5. Cable's Characteristics:

1). Max.admissible long time operating to conductor:

PVC or PE insulated should not exceed 70℃,XLPE insulated should not exceed 90℃;

2). Installing temperature should not be below -20℃;

3). Admissible bending radius:

When overall-diameter(D)is less than 25mm,it should be not less than 4D;

When overall-diameter(D) is 25mm or more,it should be not less than 6D;



Triplex Service Drop



Code name AWG or kcmil Bare Neutral Messenger Phase Conductor Weight Allowable Ampacities(A)
ACSR Rated Strength lbs. AAC Insul.Thick.Mm
No.&Dia.Mm No.& Dia.Mm No. & Dia.Mm kg/km XLPE PE
Paludina 2*6AWG+1*6AWG 1*1.68 6*1.68 1190 1*4.11 1.14 166 85 70
Voluta 2*6AWG+1*6AWG 1*1.68 6*1.68 1190 7*1.56 1.14 170 85 70
Whelk 2*4AWG+1*4AWG 1*2.12 6*2.12 1860 1*5.19 1.14 251 115 90
Periwinkle 2*4AWG+1*4AWG 1*2.12 6*2.12 1860 7*1.96 1.14 255 115 90
Conch 2*2AWG+1*2AWG 1*2.67 6*2.67 2850 7*2.47 1.14 389 150 120
Neritina 2*1/0AWG+1*1/0AWG 1*3.37 6*3.37 4380 7*3.12 1.52 624 205 160
Cenia 2*1/0AWG+1*1/0AWG 1*3.37 6*3.37 4380 19*1.89 1.52 625 205 160



Duplex Service Drop

Code word AWG or kcmil Bare Neutral Messenger Phase Conductor Weight Allowable Ampacities(A)
ALLOY Rated Strength libs. A AC Insul.Thick.Mm
Number & Dia.Mm Number&Dia.Mm kg/km XLPE PE
Chihuahua 1*6AWG+1*30.58 7*1.68 1110 1*4.11 1.14 98 85 70
Vizsla 1*6AWG+1*30.58 7*1.68 1110 7*1.56 1.14 100 85 70
Harrier 1*4AWG+1*48.69 7*2.12 1760 1*5.19 1.14 149 115 90
Whippet 1*4AWG+1*48.69 7*2.12 1760 7*1.96 1.14 151 115 90
Schnauzer 1*2AWG+1*77.47 7*2.67 2800 7*2.47 1.14 231 150 120
Heeler 1*1/0AWG+1*123.3 7*3.37 4460 19*1.89 1.52 372 205 160
