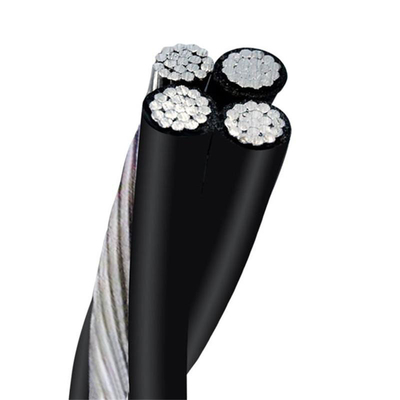

Twisted aerial bundled cable overhead transmission line abc electric cable conductors

제품 상세 정보:

원래 장소:	허난
브랜드 이름:	Sanwu
인증:	ISO CCC
모델 번호:	알파벳

결제 및 배송 조건:

최소 주문 수량:	1000M
가격:	협상 가능
포장 세부 사항:	표준 수출 나무 드럼 또는 릴
배달 시간:	1-15일
지불 조건:	L/C, D/A, D/P, T/T, 웨스턴 유니온, MoneyGram
공급 능력:	하루 200톤

접촉

상세 제품 설명

원본의 장소:	중국 허난성	지휘자:	1350 알루미늄
절연:	XLPE / PVC	유형:	낮은 전압
포장:	처리된 나무 드럼	애플리케이션:	배전
강조하다:	abc 전기 케이블 선도자 , 회전된 에테리안 뱅클 케이블 , 회전된 ABC 전력 케이블 선도기

Twisted aerial bundled cable overhead transmission line abc electric cable conductors

1. Application

Aerial Bunched Cable ABC cable primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

2. Specification of Triplex Low Voltage Power Cable

Cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire

3. Conductor:

Phase Conductor	Bare Neutral Messenger
AAC	AAC
	ACSR
	Alloy

4. Service Drop Cable Meets or Exceeds the Following Specifications:

1). Aluminum Wire,1350-H19 for Electrical Purposes;

2). Aluminum Conductors,Concentric-Lay-Stranded;

3). Aluminum Conductor,Concentric-Lay-Stranded,Coated Steel Reinforced(ACSR);

4). Concentric-Lay-Stranded 6201-T81 Conductors;

5). Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474;

5. Cable's Characteristics:

1). Max.admissible long time operating to conductor:

PVC or PE insulated should not exceed 70℃,XLPE insulated should not exceed 90℃;

2). Installing temperature should not be below -20℃;

3). Admissible bending radius:

When overall-diameter(D)is less than 25mm,it should be not less than 4D;

When overall-diameter(D) is 25mm or more,it should be not less than 6D;

Triplex Service Drop

Code name	AWG or kcmil	Bare Neutral Messenger			Phase Conductor		Weight	Allowable Ampacities(A)
		ACSR		Rated Strength lbs.	AAC	Insul.Thick.Mm	Weight	Allowable Ampacities(A)
		No.&Dia.Mm	No.& Dia.Mm	Rated Strength lbs.	No. & Dia.Mm	Insul.Thick.Mm	kg/km	XLPE	PE
Paludina	26AWG+16AWG	1*1.68	6*1.68	1190	1*4.11	1.14	166	85	70
Voluta	26AWG+16AWG	1*1.68	6*1.68	1190	7*1.56	1.14	170	85	70
Whelk	24AWG+14AWG	1*2.12	6*2.12	1860	1*5.19	1.14	251	115	90
Periwinkle	24AWG+14AWG	1*2.12	6*2.12	1860	7*1.96	1.14	255	115	90
Conch	22AWG+12AWG	1*2.67	6*2.67	2850	7*2.47	1.14	389	150	120
Neritina	21/0AWG+11/0AWG	1*3.37	6*3.37	4380	7*3.12	1.52	624	205	160
Cenia	21/0AWG+11/0AWG	1*3.37	6*3.37	4380	19*1.89	1.52	625	205	160

Duplex Service Drop

Code word	AWG or kcmil	Bare Neutral Messenger		Phase Conductor		Weight	Allowable Ampacities(A)
		ALLOY	Rated Strength libs.	A AC	Insul.Thick.Mm	Weight	Allowable Ampacities(A)
		Number & Dia.Mm	Rated Strength libs.	Number&Dia.Mm	Insul.Thick.Mm	kg/km	XLPE	PE
Chihuahua	16AWG+130.58	7*1.68	1110	1*4.11	1.14	98	85	70
Vizsla	16AWG+130.58	7*1.68	1110	7*1.56	1.14	100	85	70
Harrier	14AWG+148.69	7*2.12	1760	1*5.19	1.14	149	115	90
Whippet	14AWG+148.69	7*2.12	1760	7*1.96	1.14	151	115	90
Schnauzer	12AWG+177.47	7*2.67	2800	7*2.47	1.14	231	150	120
Heeler	11/0AWG+1123.3	7*3.37	4460	19*1.89	1.52	372	205	160
